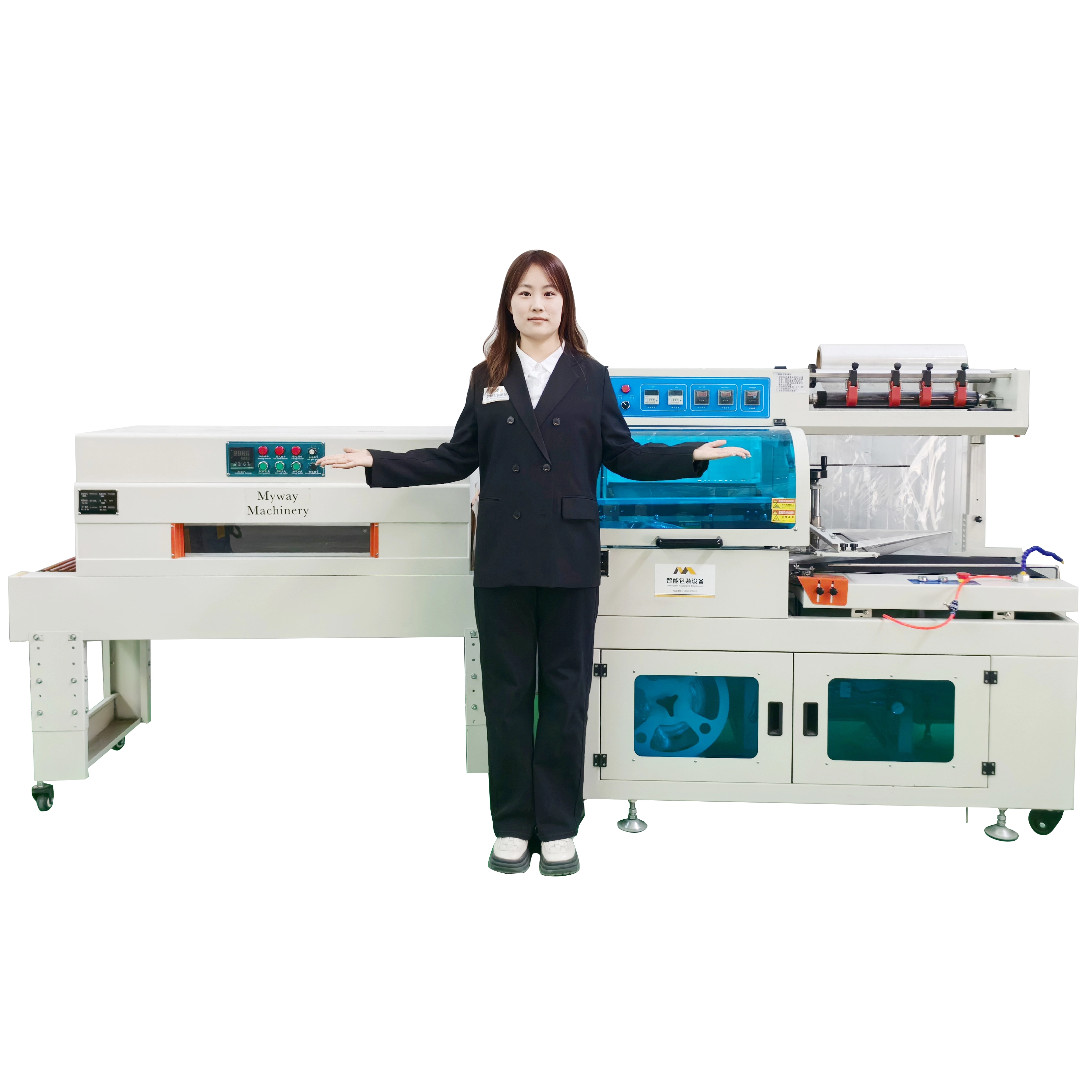

Automatic L Type Shrink Wrapping Machine
Automatic shrink wrapping machine suitable for large quantity shrink wrapping industries such as stationery, food, cosmetic, metal industries etc,imported PLC automatic program control, easy operation, safety protection and alarm function, and effectively prevent incorrect, packaging, Equipped with imported horizontal and vertical detection photoelectric, easy to switch selection. It has the function of contact, specially designed for packing small size products. The machine can be connected with the production line, no need additional operators.
Product details
Production Workshop
It boasts 3 subsidiaries and 2 production facilities in the Packaging zone of Jinan city and High tech zone of Jining city.
Product description
detailed description 1
● The membrane separation plate passes through the middle of the double-layer membrane to separate the two layers of the double-layer membrane.The position of the guide plate can be adjusted according to the shape and size of the product.
Detailed Description 2
● The waste film wheel collects the waste film generated during the use of the machine
Detailed Description 3
● The position of the pin wheel is adjustable, and the pitch of the pin wheel can be adjusted according to the size of the film. The motor pulls the film, which is efficient and safe.
Technology Data
|
Machine |
Sealing and cutting |
Shrink Tunnel |
|
Machine size(L×W×H) |
1685×828×1480mm |
1300×700×1465mm |
|
Max.packing size |
L≤500 W≤430 H≤200mm |
(L)700×(W)350×(H)200mm |
|
Max.sealing size |
(L)550×(W)450mm |
- |
|
Packing speed / |
15~25 pcs/min |
0~15 m/min |
|
Machine weight |
225kg |
260kg |
|
Power |
2.5kw |
9kw |
|
Voltage |
1PH 220V 50Hz |
3PH 380V 50Hz |
|
Air pressure |
6-8kg/cm2 |
- |
|
Film material |
POF |
POF |
