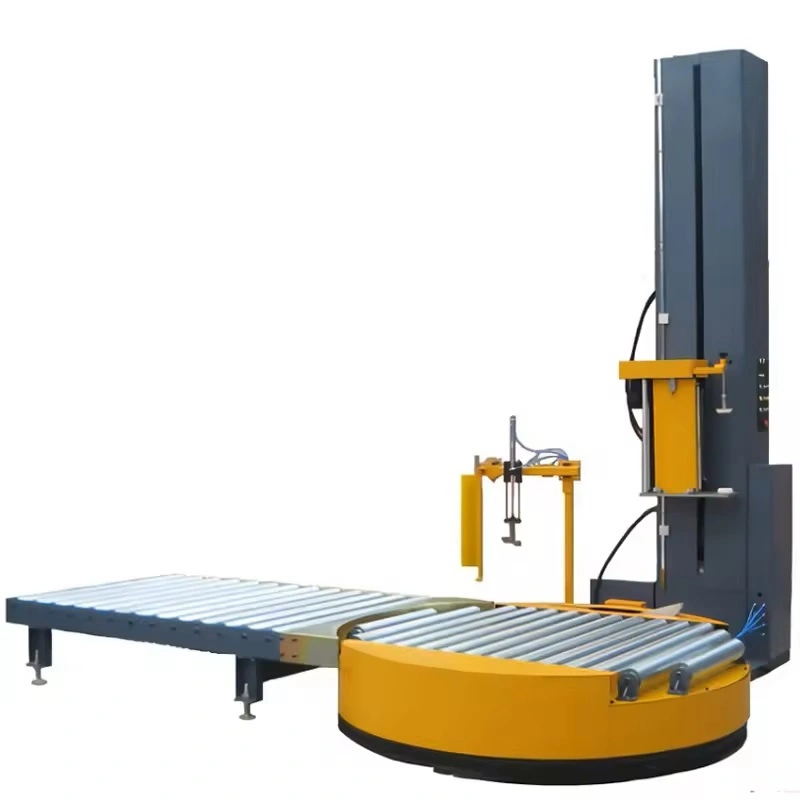

Automatic online pallet wrapping machine with conveyor
Full automatic online pallet wrapping machine
On-line pallet wrapping machine is a packaging machine that adapts to assembly line operation, meets the needs of automatic packaging in modern enterprises, and plays a very positive role in improving packaging efficiency, reducing labor intensity and effectively utilizing human resources.
Product details
Production Workshop
It boasts 3 subsidiaries and 2 production facilities in the Packaging zone of Jinan city and High tech zone of Jining city.
Product description
Control panel
● Simple and easy to operate, PLC control system.
Pneumatic device
● There is no need to manually apply the film, and the film breaking of the film is fully automatic.
Conveying device
● High-quality rollers can be equipped with conveyor lines at the front and back. The load can be increased according to demand.
Technology Data
|
Turntable diameter |
1650mm |
|
Turntable height |
93mm |
|
Turntable weight capacity |
2000kgs |
|
Turntable speed |
3~12rpm |
|
Machine weight |
700kgs |
|
Electrics |
220V 50HZ 1 Phase |
|
Power |
1.5 kw |
|
Machine dimensions(mm) |
2745(L) ×1650(w) ×2863(H) |
|
Packing efficiency |
20-40 load/h base on load |
