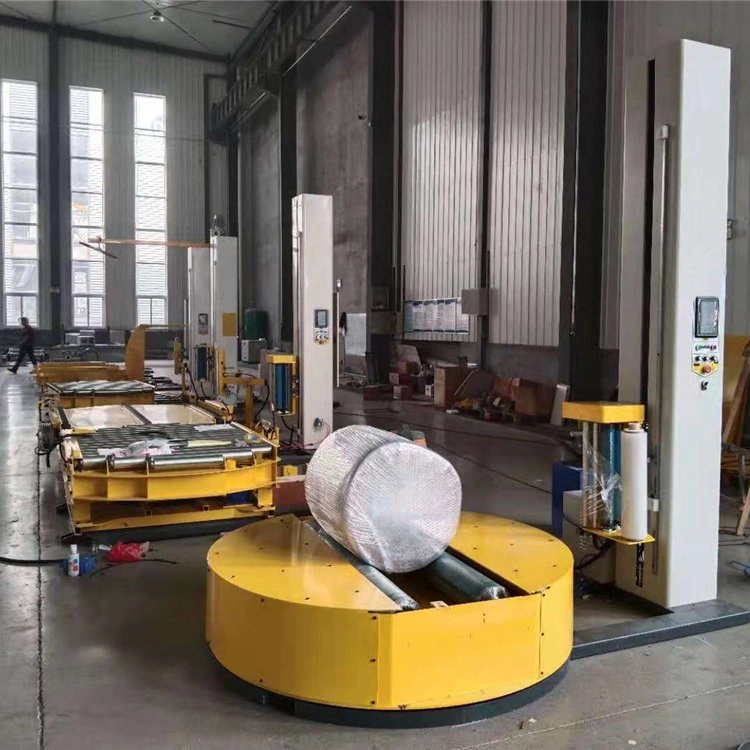

Automatic Paper Roll Wrapping Machine for Industrial Use
This automatic paper roll wrapping machine is designed for industrial use, offering efficient and precise wrapping of large paper rolls. The machine simplifies the packaging process, saving both time and manpower for businesses in the paper industry.
Product details
Production Workshop
It boasts 3 subsidiaries and 2 production facilities in the Packaging zone of Jinan city and High tech zone of Jining city.
Product description
Control
● Various parameters can be adjusted, and the operation of the machine can be adjusted according to the different needs of packaging.
Inverter
● Equipped with three frequency converters, the machine runs more stably.
Base
● Made of high quality materials, solid and sturdy, long service life.
Technology Data
|
Roll Diameter |
600-1500mm |
|
Roll Width |
500-1600mm |
|
Roll weight(Max.) |
2000kg |
|
Packing efficiency |
20-30 rolls /hour |
|
Dia.of turntable |
2000mm |
|
Turntable speed |
3-12rpm |
|
Turntable Height |
460mm |
|
Power supply |
2.0kw/AC380V |
|
Machine weight |
1080Kg |
|
Dia.of roller |
150mm |
|
Roller center distance |
420mm |
|
Machine dimension(mm) |
2895(L)×2000(W)×2300(H) |
|
Air consume (if have reel ejection system) |
1000ml/min |
