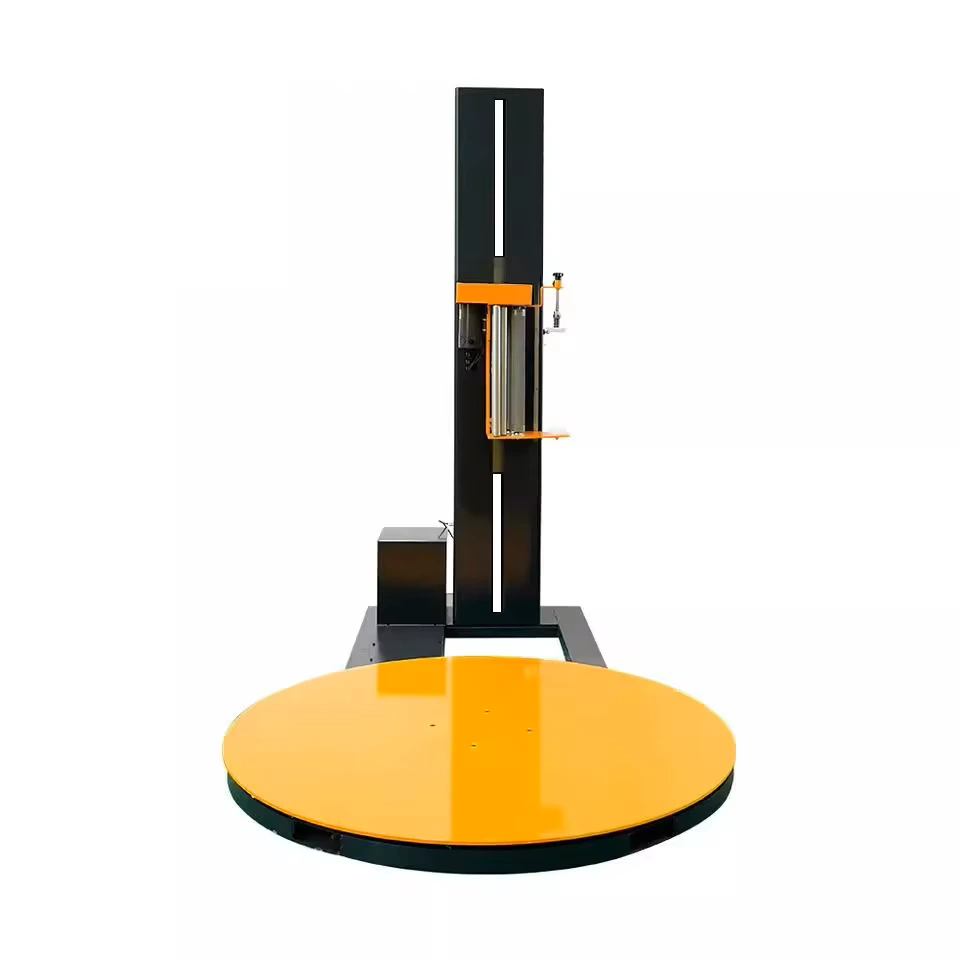

Automatic stretch film pallet wrapping machine
Pallet wrapping machine is suitable for packing goods shipped with pallets (such as container transportation of bulk goods and packing of bulk pallets, etc.). The equipment uses the contractibility and self-adhesive of wrapping film to bind the goods and pallets into a whole, which plays a fixed role. Widely used in glass products, hardware tools, electronic appliances, ceramics, food, beverage, building materials and other industries. It can improve the logistics efficiency and reduce the loss in the shipping process. It has the advantages of dust-proof, moisture-proof and low packaging cost.
Product details
Production Workshop
It boasts 3 subsidiaries and 2 production facilities in the Packaging zone of Jinan city and High tech zone of Jining city.
Product description
Operation panel
● Touch screen operation panel+one key to restore the factory setting function, The monitoring interface is added to facilitate after-sales maintenance. The machine includes one-button reduction operation, and the frequency converter includes automatic warning function.
Inverter
● There are three inverters, which control the film feeding motor, the turntable motor and the film carrier lifting motor respectively, and the adjustment is convenient and durable.
Film frame
● The film rack assembly is cut by laser, and the film rack is arranged externally, which is convenient for customers to put on the film, and allows customers to usethe film below 500mm.
Turntable
● The welded chess is frame adopts four thick rectangular steel pipes.
Technology Data
|
Model |
T1650F |
|
Wrapping product size |
L(500-1200) mm × W(500-1200)mm |
|
Wrapping height |
L type: 1800mm H type: 2400mm Y type: 2800mm |
|
Packing efficiency |
20-40 pallet/h |
|
Rotary speed |
0~15rpm rotary speed, adjustable, steady start and stop |
|
Turntable size |
Dia:1650mm Height:78mm |
|
Turntable weight capacity |
2000kgs |
|
Film carriage system |
Pre-stretch film carriage, pre-stretch up to 250%,automatic transport film |
|
Up and down upright |
Double chain structure, adjustable up and down speed by transducer |
|
Control system |
PLC programmable |
|
Power |
Turntable 0.75kw, film carriage 0.4kw, upright 0.37kw |
|
Machine weight |
700kg |
|
Machine size |
2745mm×1650mm × (2260-3260) mm |
