Pallet Wrapper machine Stretch Wrapping Machine
This pallet wrapper machine is designed to efficiently and securely wrap pallets with stretch film, providing stability and protection during transportation and storage. With adjustable settings and automated operation, this stretch wrapping machine is a cost-effective solution for improving packaging efficiency and reducing product damage.
Product details

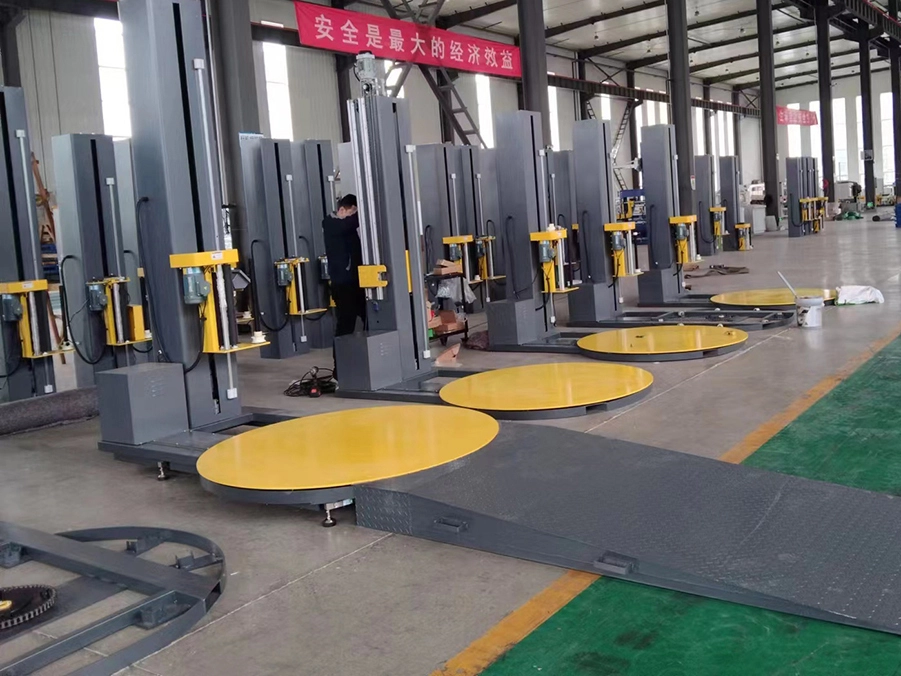

Production Workshop
It boasts 3 subsidiaries and 2 production facilities in the Packaging zone of Jinan city and High tech zone of Jining city.
Product display
Pallet Wrapping Machine Automatic Turntable Stretch Wrap film Pallet wrapper
Technology Data
|
Model |
T1650F |
|
Wrapping product size |
L(500-1200) mm × W(500-1200)mm |
|
Wrapping height |
L type: 1800mm H type: 2400mm Y type: 2800mm |
|
Packing efficiency |
20-40 pallet/h |
|
Rotary speed |
0~15rpm rotary speed, adjustable, steady start and stop |
|
Turntable size |
Dia:1650mm Height:78mm |
|
Turntable weight capacity |
2000kgs |
|
Film carriage system |
Pre-stretch film carriage, pre-stretch up to 250%,automatic transport film |
|
Up and down upright |
Double chain structure, adjustable up and down speed by transducer |
|
Control system |
PLC programmable |
|
Power |
Turntable 0.75kw, film carriage 0.4kw, upright 0.37kw |
|
Machine weight |
700kg |
|
Machine size |
2745mm×1650mm × (2260-3260) mm |
